Product Name: ACOPOWER Mono Solar Panelββ5W, 10W, 20W, 30W, 50W
Brand: ACOPOWERΒ
Watts available: 5W, 10W, 20W, 30W, 50W
Product Features:Β
High Wind: 2400Pa
Β –Β Β 12V solar panel can withstand all weather conditions such as sandstorm, strong wind, thunderstorm, blizzard, hail, etc. lt can withstand up to 2400Pa wind pressure.
Waterproof: IP65
Β Β -Low-iron tempered qlass surface and corrosion-resistant aluminum frame, make this solar panel 100% waterproof.
Snow Cover: 5400Pa
– 12V solar panel can withstand all weather conditions such as sandstorm, strong wind, thunderstorm, blizzard, hail, etc. It can withstand up to 5400Pa snow load.
π₯ππ©πππ’ππ₯ πππππ«: BUY PRODUCT and use the Coupon Code: π ππππππππ to Get ππ% ππ π !
$22.90
Product Name: ACOPOWER Mono Solar Panelββ5W, 10W, 20W, 30W, 50W
Brand: ACOPOWERΒ
Watts available: 5W, 10W, 20W, 30W, 50W
Product Features:Β
High Wind: 2400Pa
Β –Β Β 12V solar panel can withstand all weather conditions such as sandstorm, strong wind, thunderstorm, blizzard, hail, etc. lt can withstand up to 2400Pa wind pressure.
Waterproof: IP65
Β Β -Low-iron tempered qlass surface and corrosion-resistant aluminum frame, make this solar panel 100% waterproof.
Snow Cover: 5400Pa
– 12V solar panel can withstand all weather conditions such as sandstorm, strong wind, thunderstorm, blizzard, hail, etc. It can withstand up to 5400Pa snow load.
Specification
| HY005-12M | HY010-12M | HY020-12M | HY030-12M | HY050-12M | |
|---|---|---|---|---|---|
| Characteristics | 5W | 10W | 20W | 30W | 50W |
| Open-Circuit Voltage(Voc) | 21.4V | 22.0V | 22.0V | 22.0V | 23.3V |
| Optimum Circuit Voltage(Vmp) | 18V | 17.5V | 17.5V | 17.5V | 19.8V |
| Short-Circuit Current(Isc) | 0.31A | 0.61A | 1.23A | 1.84A | 2.73A |
| Optimum Circuit Current(Imp) | 0.28A | 0.57A | 1.14A | 1.71A | 2.53A |
| Maximum Power at STC(Pmax) | 5W | 10W | 20W | 30W | 50W |
| Module Efficiency | 17.8% | 10.74% | 10.89% | 12.12% | 19.2% |
| Operating Temperature | -40Β°C ~ +85Β°C | -40Β°C ~ +85Β°C | -40Β°C ~ +85Β°C | -40Β°C ~ +85Β°C | -40Β°C ~ +85Β°C |
| Maximum System Voltage | 1000V DC | 1000V DC | 1000V DC | 1000V DC | 1000V DC |
| Power tolerance | Β±3% | Β±3% | Β±3% | Β±3% | Β±3% |
| Type of cell | Mono-crystalline 125 x 125 mm (5 inches) | Mono-crystalline 125 x 125 mm (5 inches) | Mono-crystalline 125 x 125 mm (5 inches) | Mono-crystalline 125 x 125 mm (5 inches) | Mono-crystalline 158.75 x 158.75 mm (6 inches) |

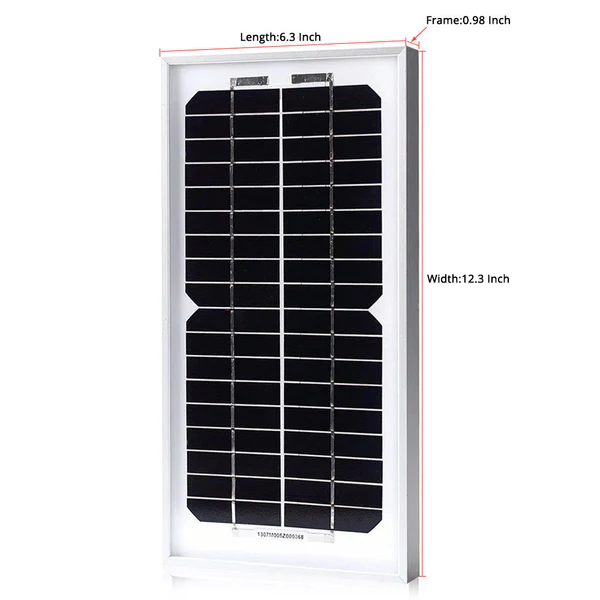

| Dimensions | 320x160x25mm (12.6×6.3×1.0 in) |
295x290x20mm (11.6×11.4×0.8 in) |
345x470x20mm (13.6×18.5×0.8 in) |
605x345x25mm (23.8×13.6×1 in) |
510x510x30mm (20x20x1.19 in) |
| Weight | 1.0 Kg (2.2 lbs) | 1.0 Kg (2.2 lbs) | 2.8 Kg (6.2 lbs) | 3.5 Kg (7.7 lbs) | 3.1 Kg (6.8 lbs) |
| Workmanship Warranty | 10-Year | 10-Year | 10-Year | 10-Year | 10-Year |
| Performance Warranty | 25-Year Power Output Warranty |
25-Year Power Output Warranty |
25-Year Power Output Warranty |
25-Year Power Output Warranty |
25-Year Power Output Warranty |
